Bourn & Koch MT³
Our latest innovation, MT³, the vertical grinder designed for milling and turning. A true "one and done" solution. A continuation of American-Made precision furthering the legacy of machine tools, designed and built in Rockford, Illinois.
Flexible Value & High Precision
The MT³ is a precision vertical grinder that can mill and turn. Click the button below to tour the machine in full real-time 3D and experience your next machining solution. Scroll down the page for full specs and options.
Tell us about your grinding challenges.
"*" indicates required fields
Precision Universal Vertical Grinder

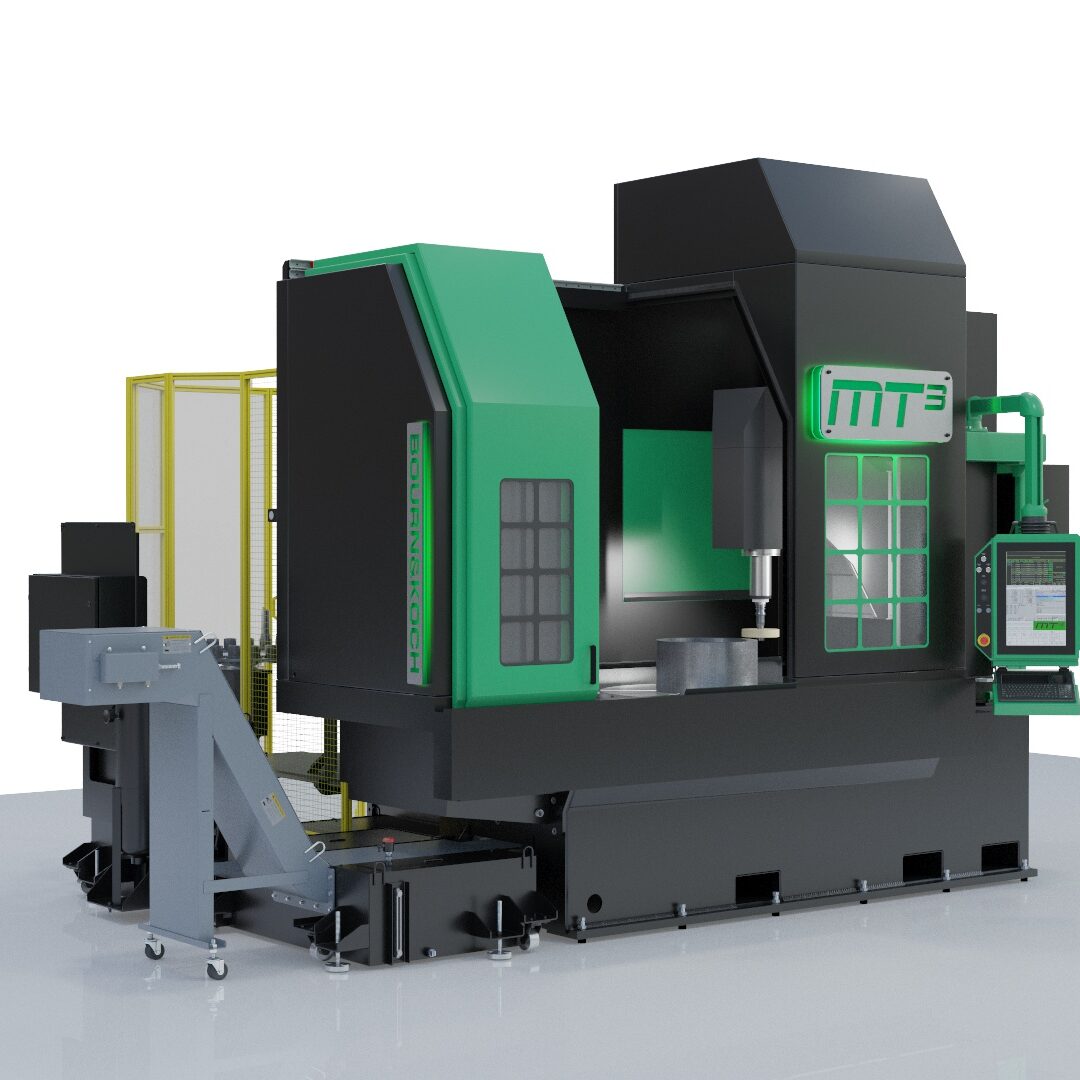

MT³ is a high precision vertical cylindrical grinder designed for ID/OD (universal) grinding processes on medium sized workpieces. The machine utilizes an innovative HBK-200 Split Spindle System to provide maximum flexibility in vertical grinding. Designed for high material removal rates, the grinding spindle has a staggering 30kW of power available to effectively grind even the toughest of materials.
Standard Grinding Features
The DNA of MT³ is a heavy duty vertical grinding machine. Built off of the time tested core of a Blanchard rotary surface grinder, the MT³ is built to withstand heavy grinding while providing precision results to +/-.0002" and mirror-like surface finishes. Our DNA is comprised of a legacy born of American Machine Tool innovation and ingenuity. Proven over decades, this machine's lineage goes back over a century.
Grind-Mill or Just Mill... Your Call
MT³ standard spindles are designed not only to handle precision grinding, but also milling, drilling, and tapping. Dedicated spindles for these operations can also be provided, allowing for maximum material removal rates and optimal spindle life across all operations. Milling operations are programmed via Fanuc Manual Guide-i with the incorporation of a virtual Y-Axis.
Make Your Machine One & Done
The addition of turning spindles to your MT³ brings the machine full circle to a one & done complete manufacturing solution. Turning tool spindles are of a rugged dedicated design to avoid the typical pitfalls of a mill-turn machine. An HSK-100 tool connection allows for heavy duty cuts to reduce cycle time prior to grinding.
Run It Lights Out

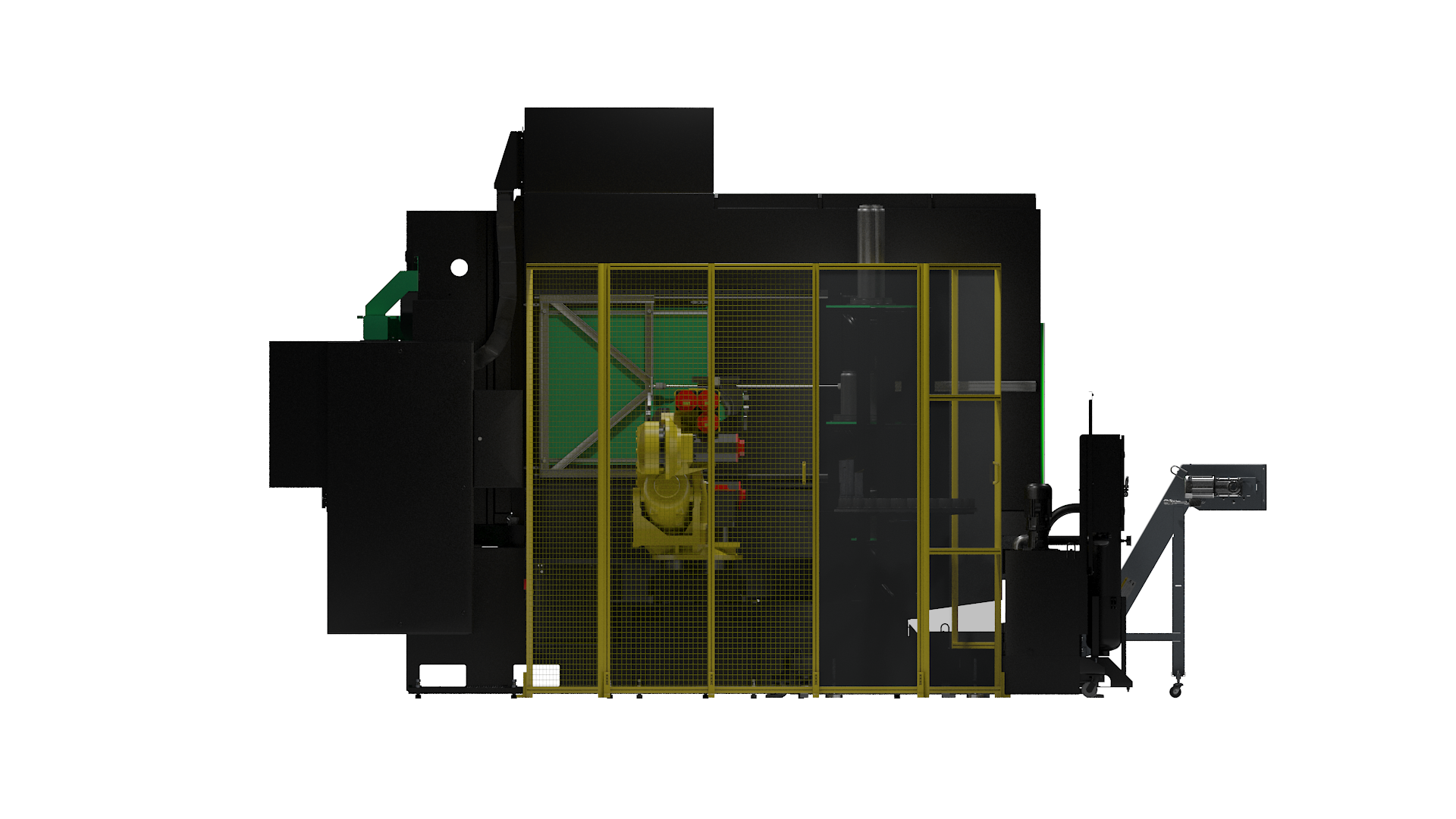

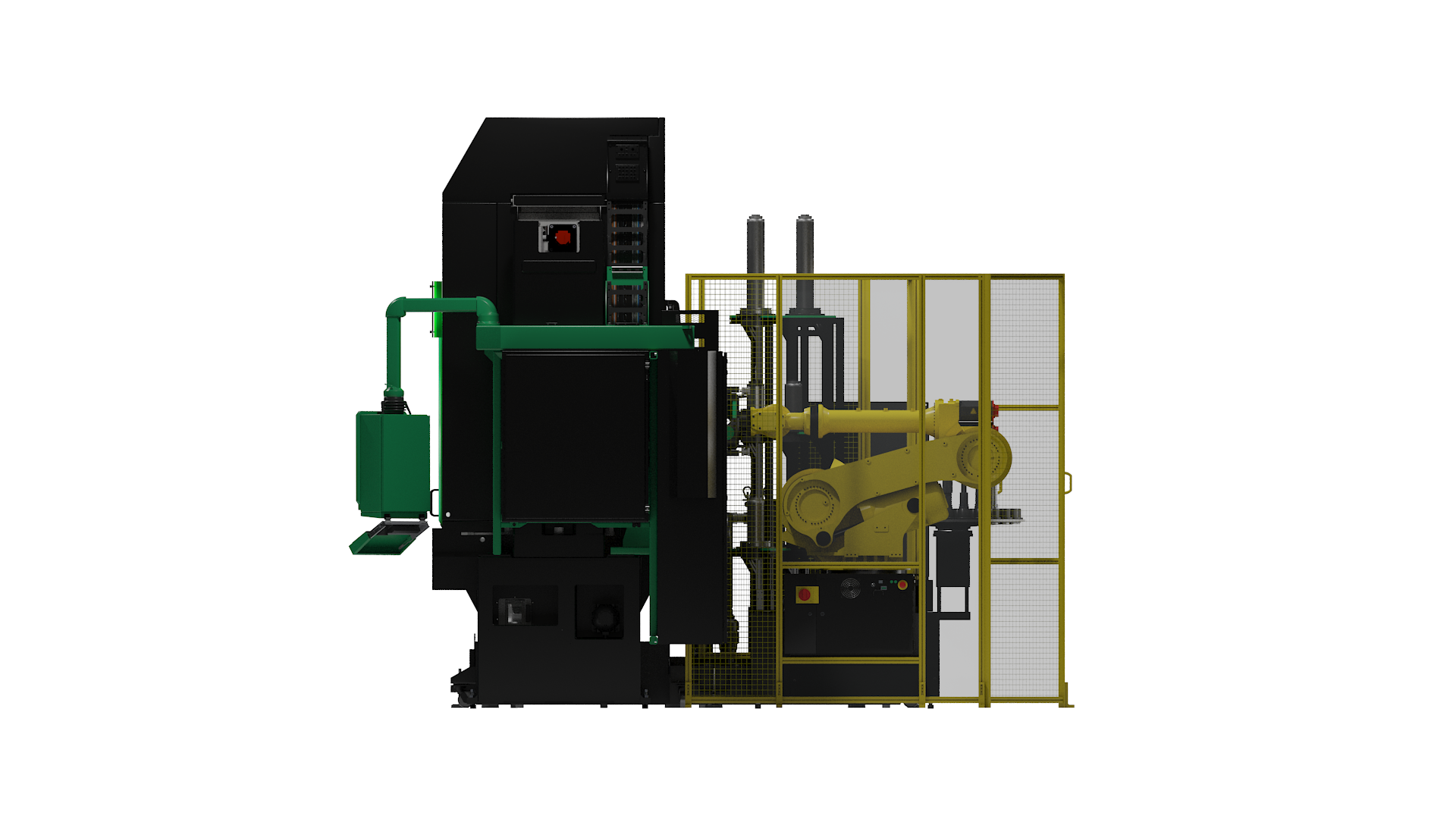

The robotic cell of MT³ is configurable to allow for automatic change of both tools and spindles and part loading. The cell utilizes a Fanuc R-2000 robot with a high payload to not only load your spindles but also parts to keep the machine running on its own, allowing operators to focus on other value added tasks or to run unattended.
Optimize Every Tool & Spindle Change
The MT³ uses our innovative Alien Claw gripper, a new approach to end of arm tooling that allows for multiple tools or spindles to be held at one time. Spindle or tool swaps are done in one operation, reducing changeover time and increasing spindle uptime.
| Standard Features | Optional Equipment | Machine Specifications |
|---|---|---|
| 42" T-Slot Table | Hydraulic / Magnetic / Pallet Changer | 100RPM Work Spindle |
| Full Machine Enclosure | Automatic Enclosure Door | 48" Machine Swing |
| Fanuc 0i CNC | Chip Conveyor | 10,000 RPM 30kW Spindle |
| BK-VG-HMI Conversational | Coolant Filtration System | 36" Z-Axis Travel |
| Virtual Y-Axis | Grind Arbor Package (HSK-50) | 30" X-Axis Travel |
| 282mm HSK-50A Grind/Mill Spindle | 440mm/615mm HSK-50A Grind/Mill Spindle | Min. Increment .0001" |
| 48" Swing | 95mm HSK-100A Turning Spindle | 6.7" Max. Grinding Wheel OD |
| High Capacity Oriented Spindle | 350mm HSK-63A Turning Spindle | 4400 lbs. Max. Workpiece |
| HBK-200 Spindle Connection | Turning Tool Package (HSK-63 / HSK-100) | 36,000 lbs. Machine Weight |
| Operator Platform | Robotic Tool & Spindle Change Cell | 295 IPM Rapid Traverse Rate |
| C-Axis Rotary Encoder | Precision Scales on X/Z Axes | 49.2 IPM Max. Feed Rate |
| Fanuc 30kW Spindle Motor | Dust/Mist/Smoke Collector | .0002" Max. Face Run-Out |
| 19.5" Touch Screen Display | Part Probing Package | 480V / 3Ph / 60 Hz Electrical |
Moving Table Modular Technology Machine Tool
MT³ is based off of the time tested, rugged design of the Blanchard grinder. Utilizing a solid base and column, the machine has as nearly a one piece design as possible. The table moves toward the spindle to infeed the workpiece to the grinding wheel. The machine is highly configurable, allowing for multiple spindles to be incorporated to the machine cell along with a robot for automatic tool and spindle change. The machine is capable of grinding, milling, drilling, tapping and turning all in one set up. The MT³ can be so much more than just your next vertical grinder! Check out what else is in store for MT³...
