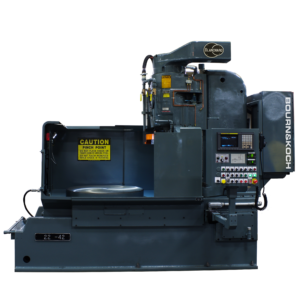

Remanufactured 22AD-42 Blanchard Surface Grinder. Only our machines can truly “Blanchard Grind”, recognized worldwide as the leader in surface grinding.
When we remanufacture your Blanchard, we take the machine down to the castings. All components and systems are fully evaluated for rebuild, replacement or retrofit. We not only rebuild or replace major machine components such as the magnetic chuck and spindle motor but also retrofit your Blanchard with newer components, systems and controls. Servo motors replace complicated gear boxes, the latest control technology now commands the motion of your grinder. A remanufacture is the total package for Blanchard Surface Grinders.
A Blanchard Surface Grinder consists of a grinding wheel or grinding segments and a rotary table. Numerous options are available for both grinding wheels and spindle drive horsepower combinations. Remanufactured models have one servo-controlled axis for downfeed. CNC Blanchard grinders are capable of downfeed increments to .0001″. The Z-Axis has encoder feedback for accurate positioning. The process of “Blanchard Grinding” is synonymous with quality, precision, and accuracy. New machine quality for parallellism and flatness can be achieved even on a Remanufactured Blanchard.
Bourn & Koch’s Remanufactured Blanchard Grinders are able to quickly and effectively remove stock from a variety of materials. Effective reductions of cycle times, elimination of operations and increase in productvity are all possible with the implementation of Blanchard Rotary Surface Grinding.
Remanufactured 22AD-42 Blanchard Grinder Construction
- Original cast iron base, column, main spindle motor housing, and table body
- Rebuilt Blanchard one-piece steel magnetic chuck (New magnetic chuck optional)
- NEW Cortland Bonus Grind-Style Wheel Holder
- DC electrical operation
- Precision hand scraped bearing surfaces
- Fanuc 35i CNC control
- 50HP rebuilt main spindle motor (HP dependent on original specifications)
Specifications for remanufactured Blanchard machines are for reference only. Our next Remanufactured Blanchard 22AD-42 will be available late summer 2024.
Contact the factory for a firm quote today. Click here to more about Blanchard grinding by reading this article in our news section.
